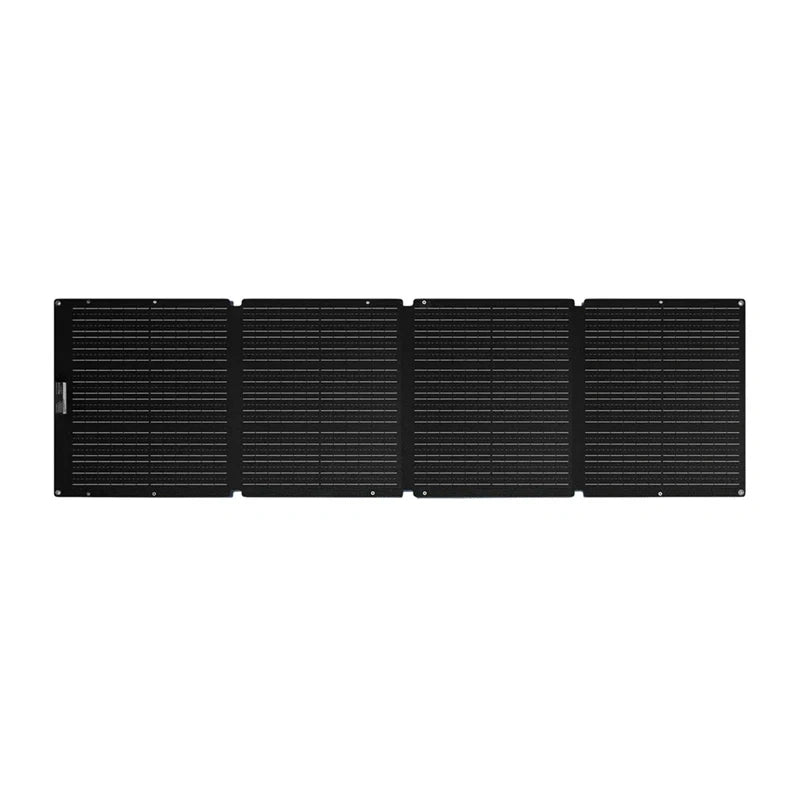

Allpowers SOLAX SE200 200W Solar Panel
The Allpowers SOLAX SE200 is a portable, foldable photovoltaic panel with a peak power output of 200 W, equipped with monocrystalline silicon cells with a declared conversion efficiency of 23–25%. The ETFE surface improves light transmission and utilization while protecting the cells from scratches and UV radiation. Its laminated construction, IP68 rating, built-in stand, and included MC4–XT60 cable make the panel well-suited for powering stations while camping, traveling in a RV, staying on a boat, or using off-grid systems.
Laminated construction and ETFE surface
The one-piece, laminated construction limits the exposure of the cells to moisture, dust, and corrosive agents. The ETFE surface, meanwhile, increases resistance to scratches and UV radiation, which is important for regular outdoor use.
IP68 Protection for Outdoor Use
The IP68 rating ensures the panel is protected against dust and water, making the SE200 suitable for use in off-grid conditions and in variable weather. However, it is recommended that the connectors remain dry when used in humid environments. The operating temperature range of −20 °C to 60 °C allows the panel to be used in a variety of weather conditions.
Foldable panel—easy to set up and transport

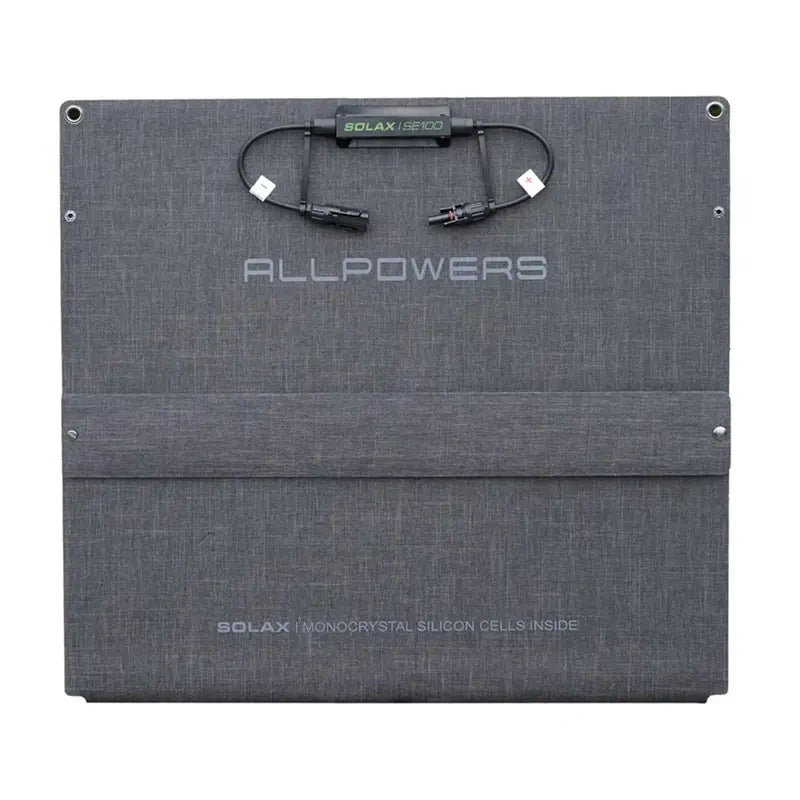

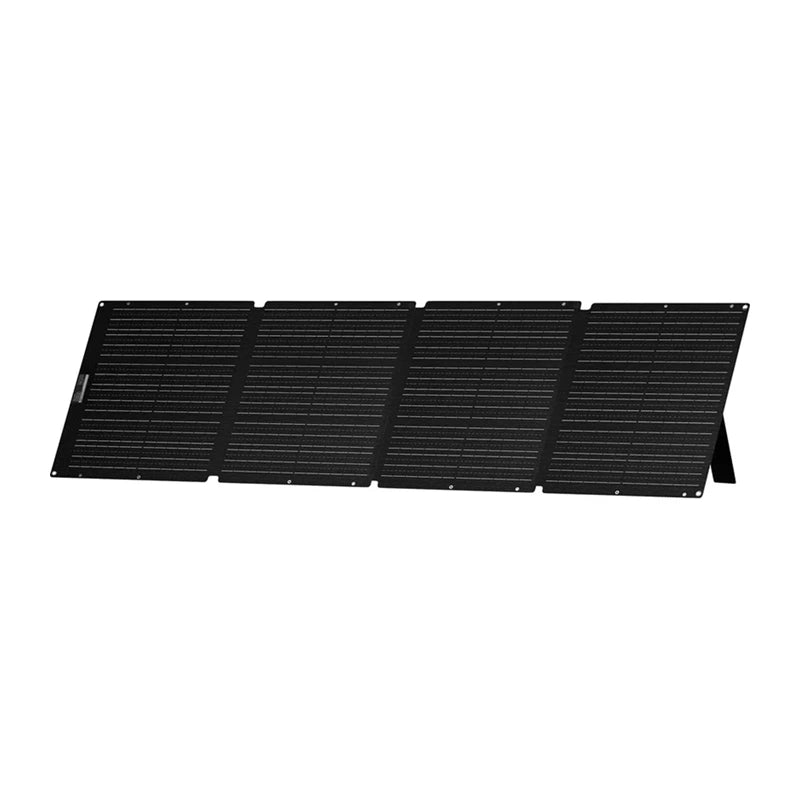

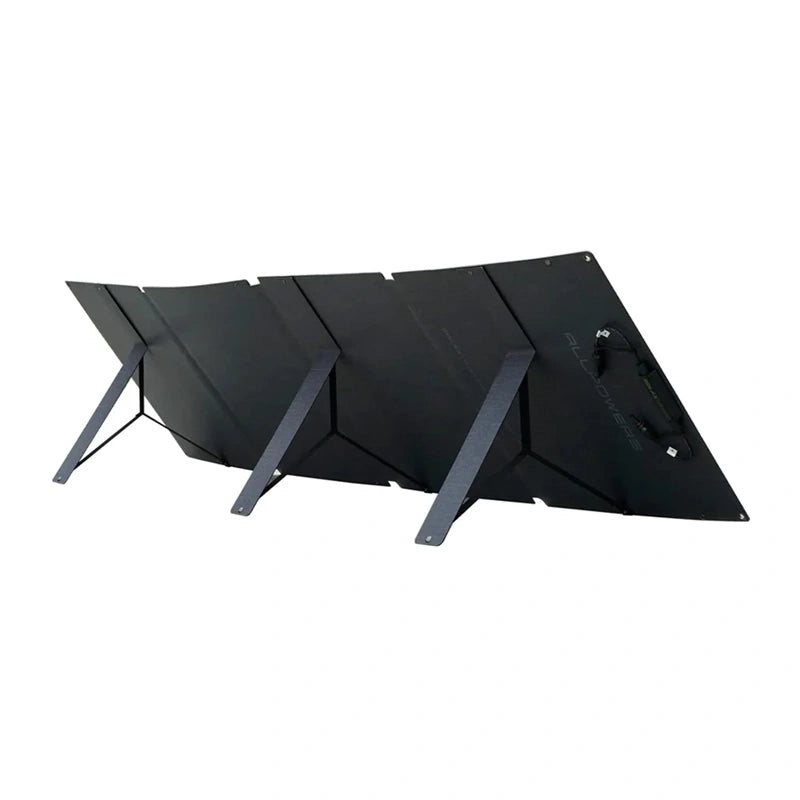

When unfolded, the SE200 measures 205.6 × 58.7 × 0.3 cm; when folded, its dimensions are reduced to 55.9 × 58.7 × 2 cm. The built-in stand allows you to quickly position the panel toward the sun without using an additional frame, and the storage bag makes it easy to secure it during transport. Weighing 7.16 kg, it remains reasonably lightweight for a 200 W panel designed for mobile use.
MC4–XT60 Connection and Key Electrical Parameters
The panel is equipped with MC4 connectors, and the included MC4–XT60 cable allows it to be connected to many popular power stations equipped with a compatible solar input. The open-circuit voltage (Voc) is 48.96 V, the maximum power voltage (Vmp) is 41.6 V, and the maximum power current (Imp) is 4.8 A. Before connecting, check the permissible voltage and current range for the photovoltaic input of the specific power station.
Included in the set
- Allpowers SE200 200 W photovoltaic panel
- Storage and transport bag
- MC4–XT60 solar cable
| Manufacturer | Allpowers |
|---|---|
| Model | SE200 |
| Peak power | 200 W |
| Cell type | monocrystalline silicon |
| Surface material | ETFE |
| Declared cell efficiency | 23–25% |
| Open-Circuit Voltage (Voc) | 48.96 V |
| Maximum Power Point Voltage (Vmp) | 41.6 V |
| Maximum Power Point Current (Imp) | 4.8 A |
| Short-Circuit Current (Isc) | 5.33 A |
| Panel connector | MC4 |
| Panel protection rating | IP68 |
| Operating temperature range | −20 °C to 60 °C |
| Dimensions when unfolded | 205.6 × 58.7 × 0.3 cm |
| Dimensions when folded | 55.9 × 58.7 × 2 cm |
| Weight | 7.16 kg |
| Design | foldable, laminated |
